Technical Data
Specification

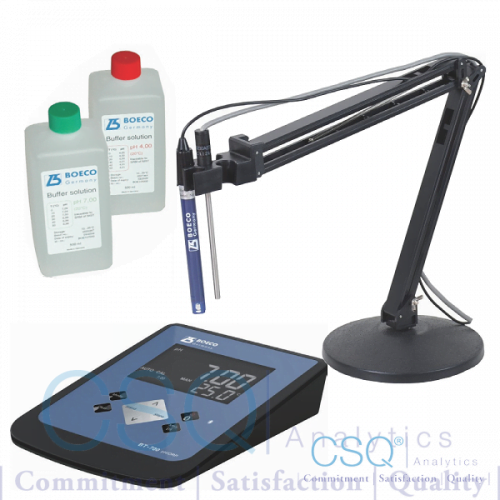

The BT-700 will be delivered incl. the following standard accessories:
1 x ATC probe, each 1 x 500 ml Buffer solution pH 4,01, pH 7,00
1 x AC adaptor,
1 x operating Manual,
1 x flexible electrode holder.
6 x 1,5 V AAA batteries
| Specification | |
| pH Range | -2 to 16,00 pH |
| Resolution | 0.01 pH |
| Accuracy | ± 0,01 |
| mV Range | -1999,9 to 1999,9 mV |
| Resolution | 0,1 mV |
| Accuracy | ± 0,5 % full scale |
| Temperature Range | -10 to 120,0°C |
| Resolution | 0,1°C |
| Accuracy | ±0,2°C |
| pH buffer recognition: | US (1,68, 4,01, 7,00, 10,01, 12,46) or NIST (1,68, 4,00, 6,86, 9,18, 12,46) user selectable |
| Buffer temp. range | 0 – 60,0 °C |
| pH calibration | Up to 5 points |
| ORP calibration: | 1 point Offset ±150mV |
| ATC: | Auto / manual -10,0 to 120°C |
| Input impedance: | >1×10 12 ohms |
| Memory: | When the unit is connected to a bluetooth device, the user can store data into the device that meets GLP requirements |
| Connectivity: |
Bluetooth
|
| Temperature sensor: | Thermistor, 10K ohms at 25°C |
| RS 232 interface: | no |
| Power requirement: | 6 x 1,5 Volt AAA batteries or AC adaptor |
| Case: | IP54 waterproof |
| Dimensions (LxWxH): | 210 x 150 x 45 mm |
| Weight: | 0,43 kg |
