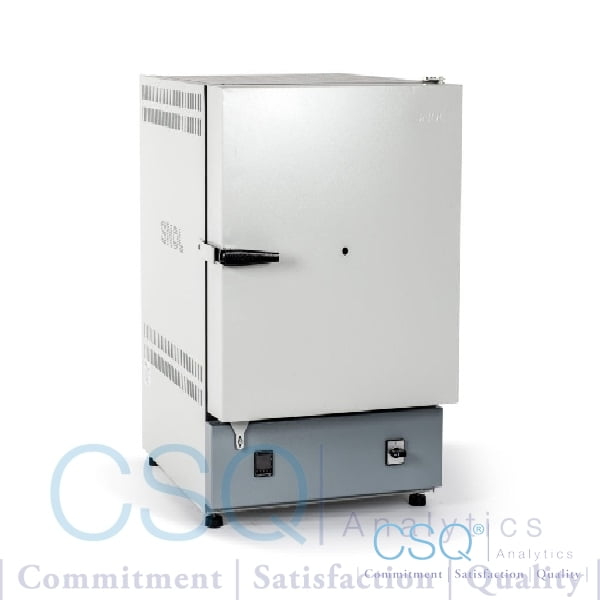

Chamber furnaces with fiber-insulated chambers up to 1100 °C.

BASIC MODEL
-Chamber is made from fiber thermal insulation plates,
-Embedded heating elements are in four sides around the chamber,
-Outside casing – metal sheet, powder painted grey,
-Door opens to the right,
-Door safety interlock switch,
-Control panel is placed on the left side,
-Microprocessor – temperature controller,
-Ceramic bottom plates,
-Fast heating time due to low thermal mass construction,
-Low power consumption,
-Good stability and uniformity,
-1 year warranty.

OPTIONS
-Process observation window (o 35 mm) up to 1100 °C
-Fan-assisted chimney for forced air extraction
-Additional ceramic bottom plates
-Buzzer
-Digital timer
-Protection against overheating
-Data recorder
-Data communication/USB
-Calibration of temperature measurement system
-Table for supporting the furnace
-Protective gas atmosphere
-Gas box up to 1100 °C
-Metal tray
-Additional 1 year warranty

Clear
SKU: N/A Categories: , , Tag:

Technical Data

SNOL 30/1100 LSF01:

Useful volume Liter 30
Rated power not more than kW 3.4
Rated supply voltage V 230
Rated frequency Hz 50
Number of phases – 1
Continuous operating temperature °C T+10-1100
Maximum  temperature °C 1100
Working chamber material – Fiber plates
Maximum heating- up time (without charge) Min. 150
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C 1
Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than ±°C 10
Furnace working chamber dimensions:
width mm 300
depth mm 405
height mm 275
Furnace external dimensions:
width mm 645
depth mm 870
height mm 835
Mass kg 96

SNOL 80/1100 LSF01:

Useful volume Liter 80
Rated power not more than kW 5.4
Rated supply voltage V 400
Rated frequency Hz 50
Number of phases – 3
Continuous operating temperature °C T+10-1100
Maximum  temperature °C 1100
Working chamber material – Fiber plates
Maximum heating- up time (without charge) Min. 150
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C 1
Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than ±°C 10
Furnace working chamber dimensions:
width mm 300
depth mm 405
height mm 600
Furnace external dimensions:
width mm 745
depth mm 800
height mm 1255
Mass kg 135
