Technical Data

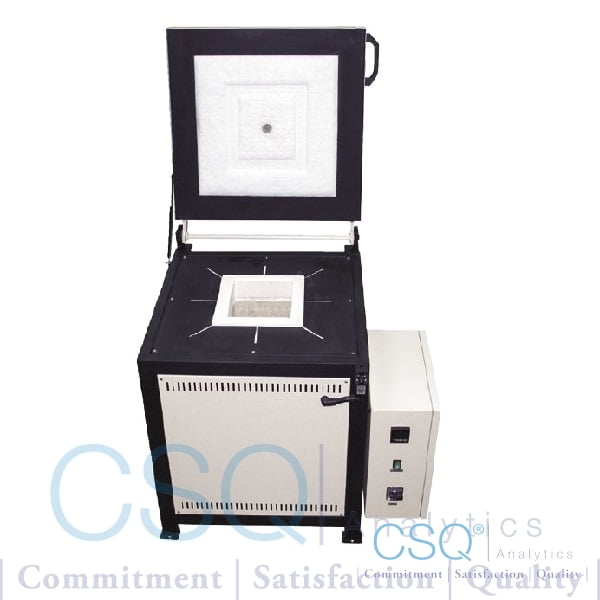

| Technical data | Dimension | SNOL 10/900 LXC02 |
| Useful volume | Liter | 10 |
| Rated power not more than | kW | 4,5 |
| Rated supply voltage | V | 230 |
| Rated frequency | Hz | 50 |
| Number of phases | – | 1 |
| Continuous operating temperature | °C | T+10-900 |
| Maximum temperature | °C | 900 |
| Working chamber material | – | Ceramic |
| Maximum heating- up time (without charge) | Min. | 120 |
| Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than | ± °C | 1 |
| Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than | ±°C | 10 |
| Furnace working chamber dimensions: | ||
| width | mm | 150 |
| depth | mm | 150 |
| height | mm | 450 |
| Furnace external dimensions: | ||
| width | mm | 840 |
| depth | mm | 786 |
| height | mm | 823 |
| Mass | kg | 144 |
