Chamber ovens up to 200 °C.

  • Made from high quality materials to be long lasting
  • Chamber made from mild or stainless steel
  • The door can opens to the sideways only
  • Low power consumption
  • Optional forced air circulation (only in model SNOL 200/200) assures even temperature distribution throughout chamber and high quality thermal processing occurs quickly
  • Has 2 shelves in the oven
  • Short heating up and cooling down period
  • Excellent for for scientific laboratories, educational institutions, medicine and industry
Clear
SKU: N/A Categories: , Tag:

Technical Data

SNOL 24/200 LSP01

Technical data Dimension  SNOL 24/200 LSP01
Useful volume Liter 24
Rated power not more then kW 1
Rated supply voltage Volt 230
Rated frequency Hz 50
Number of phases – 1
Continuous operating temperature °C T+10-200
Maximum  temperature °C 200
Working chamber material – Mild steel
Working chamber surroundings – Air (without hot air fan)
Shelves (number) 2
Maximum heating- up time (without charge) Min. 40
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more then ±°C 1
Temperature uniformity in working space at rated temperature in thermal steady state with charge not more then ±°C 15
Furnace working chamber dimensions:
width mm 300
depth mm 380
height mm 200
Outside dimensions:
width mm 400
depth mm 515
height mm 410
Mass kg 18

SNOL 200/200 LSP11

Technical data Dimension  SNOL 200/200 LSP11
Useful volume Liter 200
Rated power not more than kW 2
Rated supply voltage V 230
Rated frequency Hz 50
Number of phases – 1
Continuous operating temperature °C T+10-200
Maximum  temperature °C 200
Working chamber surroundings – air (with hot air fan)
Airflow horizontal
Shelves (number)/max. 2/5
Maximum heating- up time (without charge) up to 200°C Min. 45
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C 1
Temperature uniformity in working space at 200°C temperature in thermal steady state without charge not more than ±°C 10
Oven working chamber dimensions:
width mm 710
depth mm 610
height mm 460
Outside dimensions:
width mm 1040
depth mm 780
height mm 775
Mass kg 78

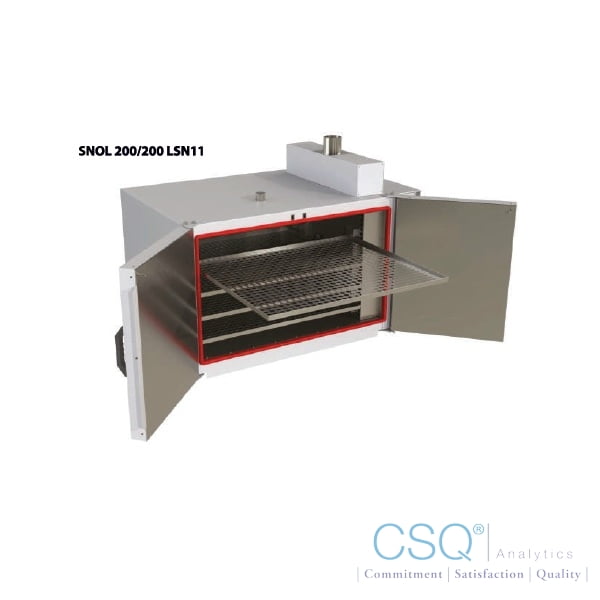

SNOL 200/200 LSN11

Technical data Dimension  SNOL 200/200 LSN11
Useful volume Liter 200
Rated power not more than kW 2
Rated supply voltage V 230
Rated frequency Hz 50
Number of phases – 1
Continuous operating temperature °C T+10-200
Maximum  temperature °C 200
Working chamber surroundings – air (with hot air fan)
Airflow horizontal
Shelves (number)/max. 2/5
Maximum heating- up time (without charge) up to 200°C Min. 45
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C 1
Temperature uniformity in working space at 200°C temperature in thermal steady state without charge not more than ±°C 10
Oven working chamber dimensions:
width mm 710
depth mm 610
height mm 460
Outside dimensions:
width mm 1040
depth mm 780
height mm 775
Mass kg 78
