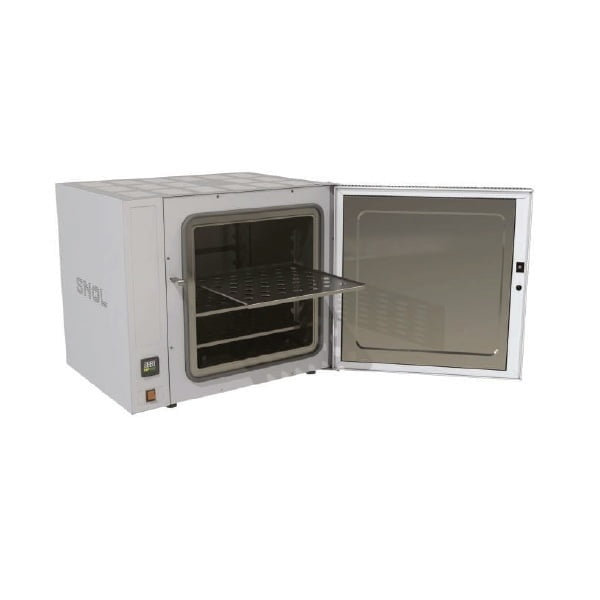

Chamber ovens up to 350 °C.

  • Made from high quality materials to be long lasting
  • Chamber made from stainless steel
  • The door can opens to the sideways only
  • Low power consumption
  • Has 3 shelves in the oven
  • Short heating up and cooling down period
  • Excellent for for scientific laboratories, educational institutions, medicine and industry
Clear
SKU: N/A Categories: , Tag:

Technical Data

SNOL 58/350 LSP11

Technical data Dimensions  SNOL 58/350 LSP11
Useful volume Liters 58
Rated power not more than kW 2
Rated supply voltage V 230
Rated frequency Hz 50
Number of phases – 1
Continuous operating temperature °C T+10-350
Maximum  temperature °C 350
Working chamber surroundings – air (with hot air fan)
Airflow horizontal
Shelves (number)/max. 3/7
Maximum heating- up time (without charge) up to 350°C Min. 40
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C 1
Temperature uniformity in working space at 350°C temperature in thermal steady state without charge not more than ±°C 2,5
Oven working chamber dimensions:
width mm 390
depth mm 375
height mm 360
Outside dimensions:
width mm 670
depth mm 615
height mm 580
Mass kg 40

SNOL 58/350 LSN11

Technical data Dimensions  SNOL 58/350 LSN11
Useful volume Liters 58
Rated power not more than kW 2
Rated supply voltage V 230
Rated frequency Hz 50
Number of phases – 1
Continuous operating temperature °C T+10-350
Maximum  temperature °C 350
Working chamber surroundings – air (with hot air fan)
Airflow horizontal
Shelves (number)/max. 3/7
Maximum heating- up time (without charge) up to 350°C Min. 40
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C 1
Temperature uniformity in working space at 350°C temperature in thermal steady state without charge not more than ±°C 2,5
Oven working chamber dimensions:
width mm 390
depth mm 375
height mm 360
Outside dimensions:
width mm 670
depth mm 615
height mm 580
Mass kg 40

SNOL 67/350 LSP01

Technical data Dimension  SNOL 67/350 LSP01
Useful volume Liter 67
Rated power not more than kW 2
Rated supply voltage V 230
Rated frequency Hz 50
Number of phases – 1
Continuous operating temperature °C T+10-350
Maximum  temperature °C 350
Working chamber surroundings – air (without hot air fan)
Airflow natural
Shelves (number)/max. 3/7
Maximum heating- up time (without charge) up to 350°C Min. 40
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C 2
Temperature uniformity in working space at 350°C temperature in thermal steady state without charge not more than ±°C 14
Oven working chamber dimensions:
width mm 390
depth mm 445
height mm 390
Outside dimensions:
width mm 670
depth mm 615
height mm 580
Mass kg 37

SNOL 67/350 LSN01

Technical data Dimension  SNOL 67/350 LSN01
Useful volume Liter 67
Rated power not more than kW 2
Rated supply voltage V 230
Rated frequency Hz 50
Number of phases – 1
Continuous operating temperature °C T+10-350
Maximum  temperature °C 350
Working chamber surroundings – air (without hot air fan)
Airflow natural
Shelves (number)/max. 3/7
Maximum heating- up time (without charge) up to 350°C Min. 40
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C 2
Temperature uniformity in working space at 350°C temperature in thermal steady state without charge not more than ±°C 14
Oven working chamber dimensions:
width mm 390
depth mm 445
height mm 390
Outside dimensions:
width mm 670
depth mm 615
height mm 580
Mass kg 37
