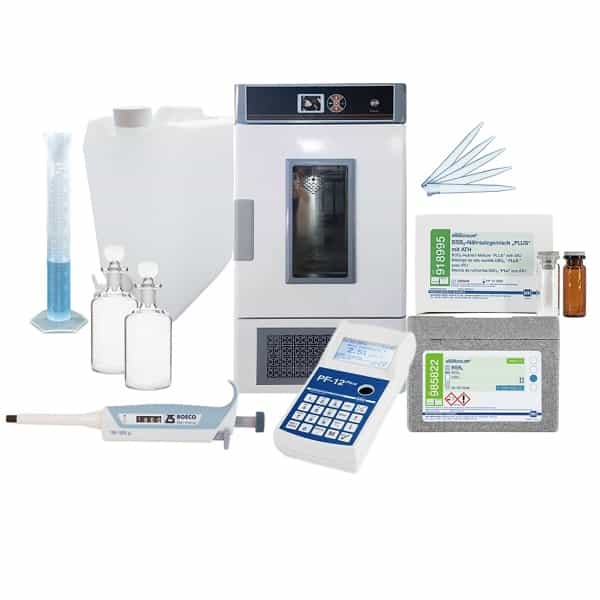

SET A: Photometer PF-12+ BOD & COD Package incl. Heating Block, Incubatori, BOD Accessories Set, Nanocolor BOD & COD Test Kit, Micropipette

Technical Data

1. VISOCOLOR reagent case with photometer PF-12 Plus
Technical data
Type: Filter photometer with microprocessor control, self-test and auto-calibration
Wavelength range: 340-860 nm
Optics: Automatic filter wheel with 7 interference filters. Insensitive to external light-no light shield required
Wavelengths: 345 / 436 / 470 / 540 / 585 / 620 / 690 nm plus 1 compartment for an additional filter
Wavelength accuracy: ± 2 nm, bandwidth at half transmission 10-12 nm
Light source: Xenon lamp
Detector: Silicon photodiode
Blank value: Automatic
Measuring modes: Over 100 preprogrammed tests. (NANOCOLOR® tube tests and VISOCOLOR® ECO tests). Absorbance, transmission, factor, standard, 50 freely programmable methods
Photometric range: ± 3 E
Photometric accuracy: ± 1 %
Stability: < 0.002 E/h
Cuvette holder: Round tubes 16 mm OD
Data memory: 1000 results, GLP conform
Display: Backlit graphic display, 64 x 128 pixels. All important data at a glance: Result in respective unit, date, time, sample number, sample location and dilution
Operation: Display userguidance, plastic foil keyboard. Test selection via test number or parameter lists 12 languages (de, en, fr, es, it, nl, hu, pl, pt, cz, id, si)
Quality Control: With NANOCONTROL NANOCHECK
Interface: USB 2.0
Update: Via Internet / PC, free of charge
Operating range: 0-50 °C, up to 90 % relative humidity
Power supply: Via USB power supply, standard or rechargeable batteries
Housing: Waterproof, IP 67
Dimensions: 215 x 100 x 65 mm
Weight: 0.7 kg
Warranty: 2 years
Brand: Macherey-Nagel, Germany

2. Heating block NANOCOLOR VARIO Mini 6 bores for test tubes 16 mm OD
Type: Heating block for chemical and analytical digestion
Number of bore holes: 6 (16 mm outer diameter)
Display : Graphic display 128 x 64 Pixel
Operation : Icon-based menu guidance with four buttons
Temperatures : 6 preprogrammed temperatures (70 °C , 100 °C , 120 °C , 148 °C , 150 °C , 160 °C)
Temperature stability : ± 1 °C (according to DIN, EN, ISO and EPA methods)
Warm-up time : from 20 °C to 160 °C within 25 minutes (at 20 °C ambient temperature)
Heating times : 30 min, 60 min, 120 min
Safety : Safety cover with lockable protective lid and overheating protection
Interface : Mini-USB-OTG (On-The-Go)
Internal quality control : with NANOCOLOR® USB T-Set (REF 919 921). Fully automated calibration and test certificate generation
Update : via internet and USB-stick
Operating range : 10 °C – 40 °C; max. 80% relative humidity (without condensation)
Power supply : 12 V DC 5A
Power consumption : 60 W
Dimensions : 105 x 125 x 170 mm
Weight : 0.67 kg (without power supply)
Marking : CE
Warranty : 2 years
Brand: Macherey-Nagel, Gemany

3. Programmable Heating & Refrigerated Incubator
Warranty : 1 year

4. BOD Accessories Set
The accessories set consists of an electric air pump, tubing, a 10 liter Aspirator Bottle, measuring cylinder PP 250ml, 2 pcs 1 liter Laboratory Bottle and 4 pcs BOD Bottles.

5. BOD Reagent Set
– NANOCOLOR BOD5-W (incubation with Winkler bottles), 2-3000mg/L, 50 tests
– NANOCOLOR Nutrient mixture PLUS with NATH, for BOD5 determination, 20 vials
Brand: Macherey-Nagel, Germany

6. Nanocolor COD Test Kit
– COD 160 (15-160 mg/lt)
Brand: Macherey-Nagel, Germany

7. Micropipette 10ml
Included:
– FOC 10ml pipette tips
Brand: BOECO, Germany
