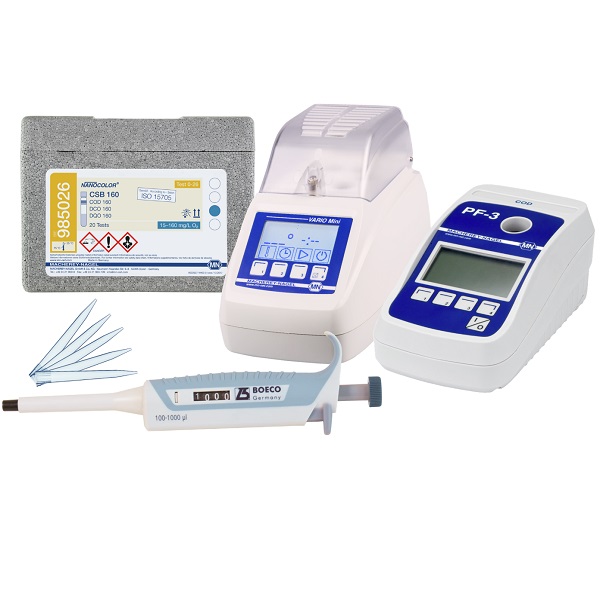

SET C: Photometer PF-3 COD Package incl. Heating Block Vario Mini, Nanocolor COD Test Kit, Micropipette

Technical Data

1. Photometer PF-3 version G for evaluation of NANOCOLOR tube tests (COD) incl. manual, batteries and certificate in a box
Type: LED photometer with 3 interference filters
Wavelengths: Version G: 365 nm, 450 nm, 595 nm
Wavelength accuracy: ± 2 nm, bandwidth at half transmission 10-12 nm
Measuring modes: Pre-programmed MN-tests
Cuvette holder: Tubes 16 mm OD
Memory: 50 results
Display: Backlit graphic display, result with unit
Operation: Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists
Power supply: 3 AA batteries, rechargeable batteries, USB interface; optional internal accu-pack
Housing: Water proof, IP 68 certified
Dimensions: 170 x 95 x 68 mm
Warranty: 2 years
Brand: Macherey Nagel, Germany

2. Heating block NANOCOLOR VARIO Mini 6 bores for test tubes 16 mm OD
Type: Heating block for chemical and analytical digestion
Number of bore holes: 6 (16 mm outer diameter)
Display : Graphic display 128 x 64 Pixel
Operation : Icon-based menu guidance with four buttons
Temperatures : 6 preprogrammed temperatures (70 °C , 100 °C , 120 °C , 148 °C , 150 °C , 160 °C)
Temperature stability : ± 1 °C (according to DIN, EN, ISO and EPA methods)
Warm-up time : from 20 °C to 160 °C within 25 minutes (at 20 °C ambient temperature)
Heating times : 30 min, 60 min, 120 min
Safety : Safety cover with lockable protective lid and overheating protection
Interface : Mini-USB-OTG (On-The-Go)
Internal quality control : with NANOCOLOR® USB T-Set (REF 919 921). Fully automated calibration and test certificate generation
Update : via internet and USB-stick
Operating range : 10 °C – 40 °C; max. 80% relative humidity (without condensation)
Power supply : 12 V DC 5A
Power consumption : 60 W
Dimensions : 105 x 125 x 170 mm
Weight : 0.67 kg (without power supply)
Marking : CE
Warranty : 2 years
Brand: Macherey-Nagel, Gemany

3. Nanocolor COD Test Kit
– COD 160 (15-160 mg/lt)
Brand: Macherey-Nagel, Germany

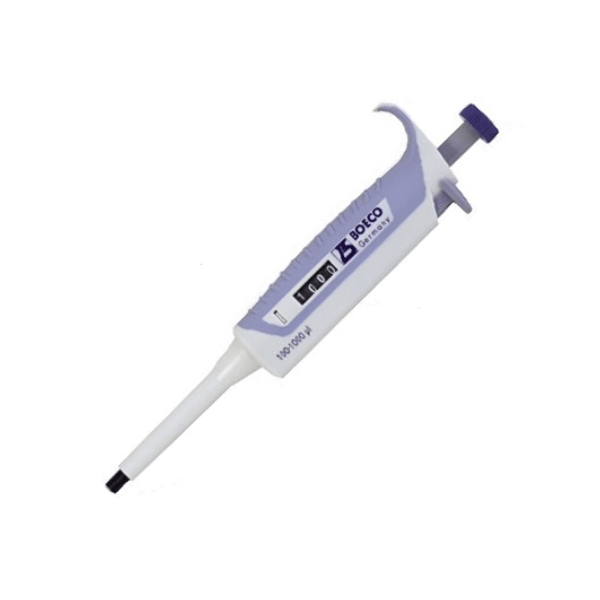

4. Micropipette 2ml
Included:
– FOC 28 pcs pipette tips, J type
Brand: BOECO, Germany

** Commissioning will be provided with the Self-learning video (USB drive) during delivery.
